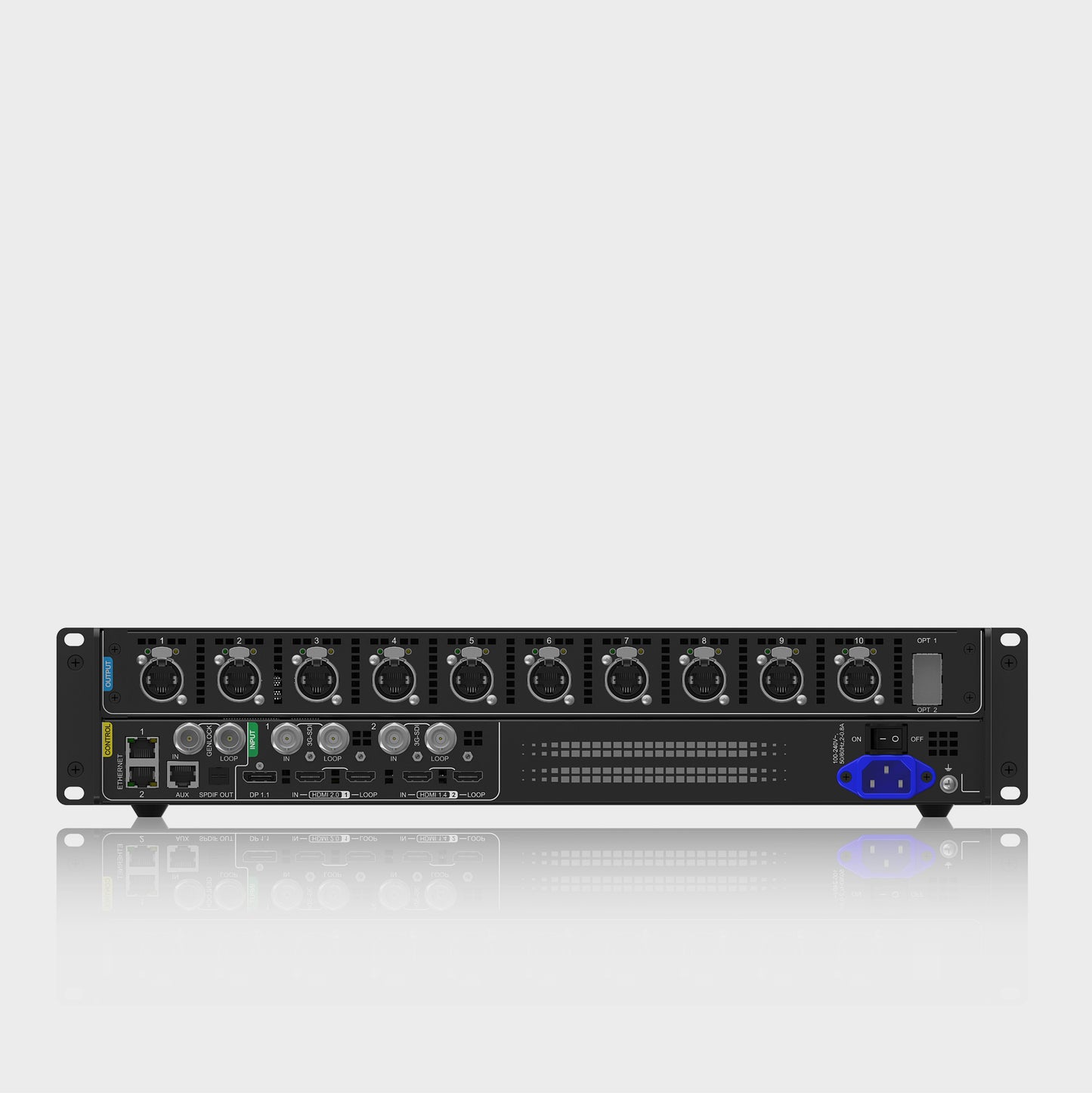

NovaStar MX30

NovaStar MX30

123456789

£1,832.50 GBP
£1,832.50 GBP
Sale Sold out
  • All prices are subject to VAT

The MX30 is part of NovaStar's COEX series. This controller integrates video processing and controlling in one device.

In conjunction with NovaStar's new VMP software (Vision Management Platform), the user is offered simple operation with extensive functions.

Hardware features:

Inputs:

  • 1x HDMI 2.0 (max. 4096×2160@60Hz(forced); min. 800×600@60Hz)
    • Custom EDID's: max. width: 8192 (8192×1080@60Hz); max. height: 7680 (1080×7680@60Hz)
  • 1x HDMI 1.4 (max 4096×1080@60Hz(forced); min 800×600@60Hz)
    • Custom EDID's: max. width 4096 (4096×1080@60Hz); max. height: 4096 (1080×4096@60Hz)
  • 1x DP1.1 (max. 4096×1080@60Hz (forced), min. 800×600@60Hz)
    • Custom EDID's: max width: 4096 (4096×1080@60Hz); max height: 4096(1080×4096@60Hz);
  • 2x 3G-SDI
    • Supports ST-424(3G), ST-292(HD) & ST-259(SD) video inputs

Outputs:

  • 10x LED-Out (RJ45):
    • 8Bit@60Hz: 659,000 pixels
    • 10Bit@60Hz: 494,000 pixels (with A10s Pro)
  • 1x HDMI 2.0 Loop
  • 1x HDMI 1.4 Loop
  • 1x 3G-SDI Loop
  • 2x OPT-Out (10G)
  • 1x SPDIF (reserved)

Further Features:

  • LOCK OF GENLOCK
  • 3x Layer
  • 14Ch Color Correction
  • Full Grayscale Calbration
  • low latency
  • integrated network switch for cascading multiple devices

General Specifications:

  • Supply voltage: 100-240V~, 50/60Hz
  • max. power consumption: 55w
  • Dimensions: 482.6 x 94.2 x 466.07mm (WxDxH)
  • Weight: 7,2kg
