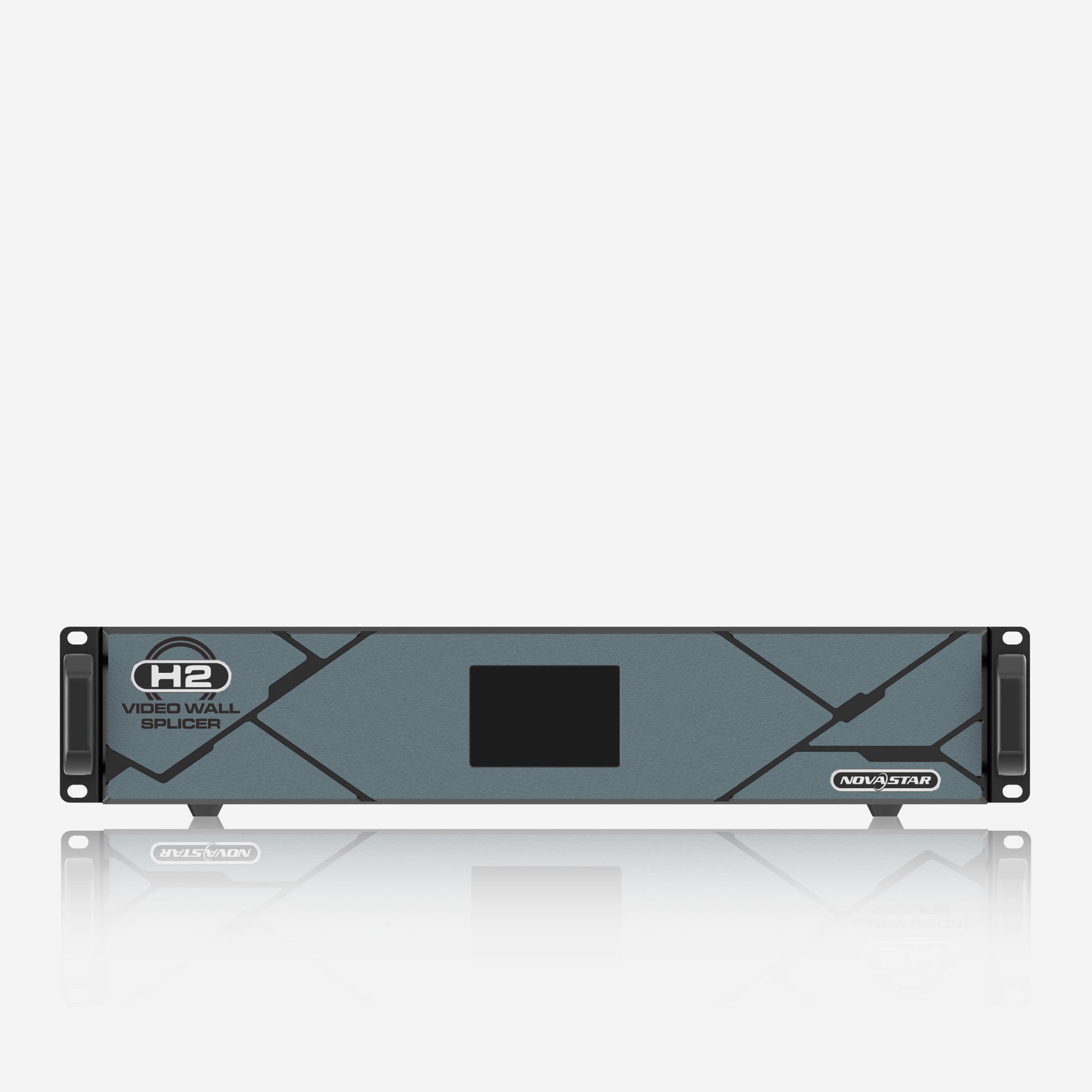

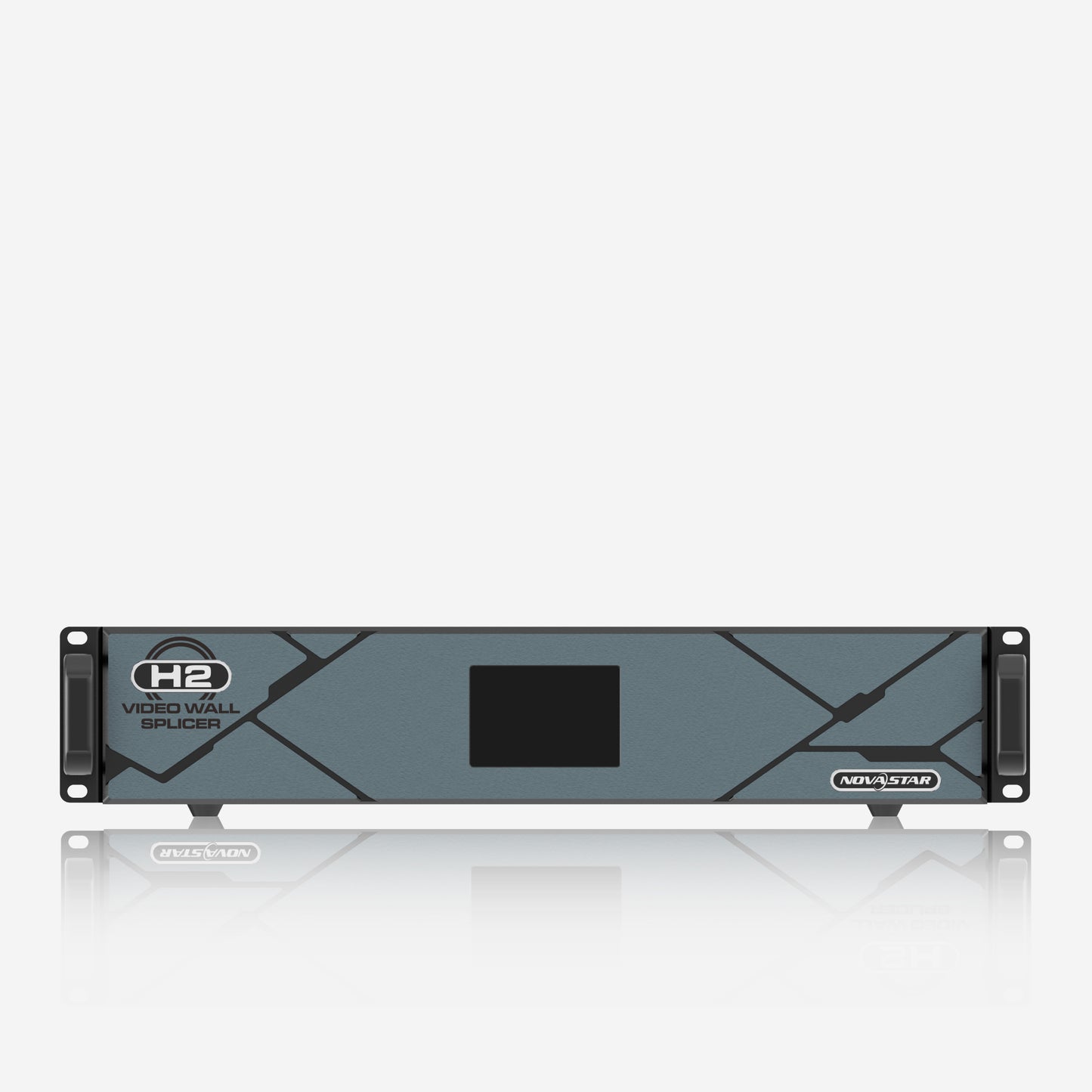

NovaStar H2 Video Wall Splicer

NovaStar H2 Video Wall Splicer

SKU:NovaStar-H2-Splicer

Regular price £474.17 GBP
Regular price Sale price £474.17 GBP
Sale Sold out

Low stock

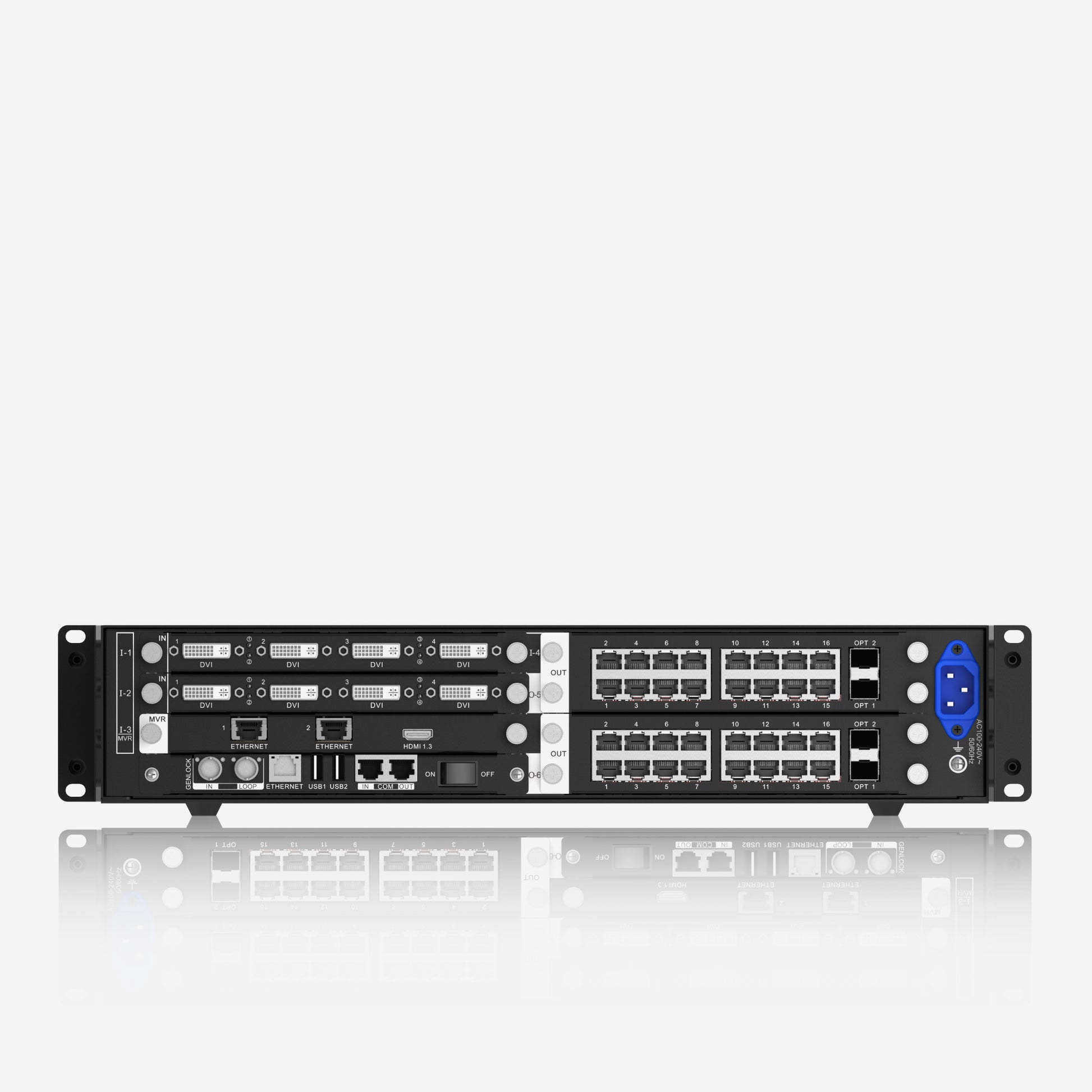

The H2 is part of NovaStar's latest generation of video wall splicers, which feature outstanding image quality and are specifically designed for fine-pitch LED displays. The H2 can operate either as a splicer, integrating both video processing and video control functions, or as a pure splicing processor. The entire unit is modular and pluggable, allowing flexible configuration, as well as "hot-swapping" of input and output boards. Thanks to its excellent features and stable performance, the H2 can be used in a wide range of applications.

Hardware Features

  • Two different types of 4K Sending Cards available:
    • H_20xRJ45: Manages up to 13 million pixels
    • H_16xRJ45: Manages up to 10.4 million pixels (incl. 2x OPT-Out)
  • Different configurations possible on one Sending Card:
    • 4x 2K×1K@60Hz
    • 2x 4K×1K@60Hz
    • 1x 4K×2K@60Hz
  • Online monitoring for all input & output cards
  • "Hot-Swap" function for all in- & output cards
  • IP input card H_2xRJ45 supports up to 100 IP cameras incl. input mosaic
  • Automatic decryption of HDCP protected sources
  • multi-screen management
  • web control

Specifications:

  • Max. Number of input cards: 4
  • Max. Number of input channels: 16
  • Max. Number of output cards: 2
  • Max. Loading Capacity: 26,000,000 Pixel
  • Max. Number of layers: 32

General Specifications:

  • Supply voltage: AC 100-240V, 50/60HZ
  • Power consumption: 210Watt
  • Dimensions: 482.6 x 88.1 x 455mm (WxDxH)
  • Weight: 15,6kg
