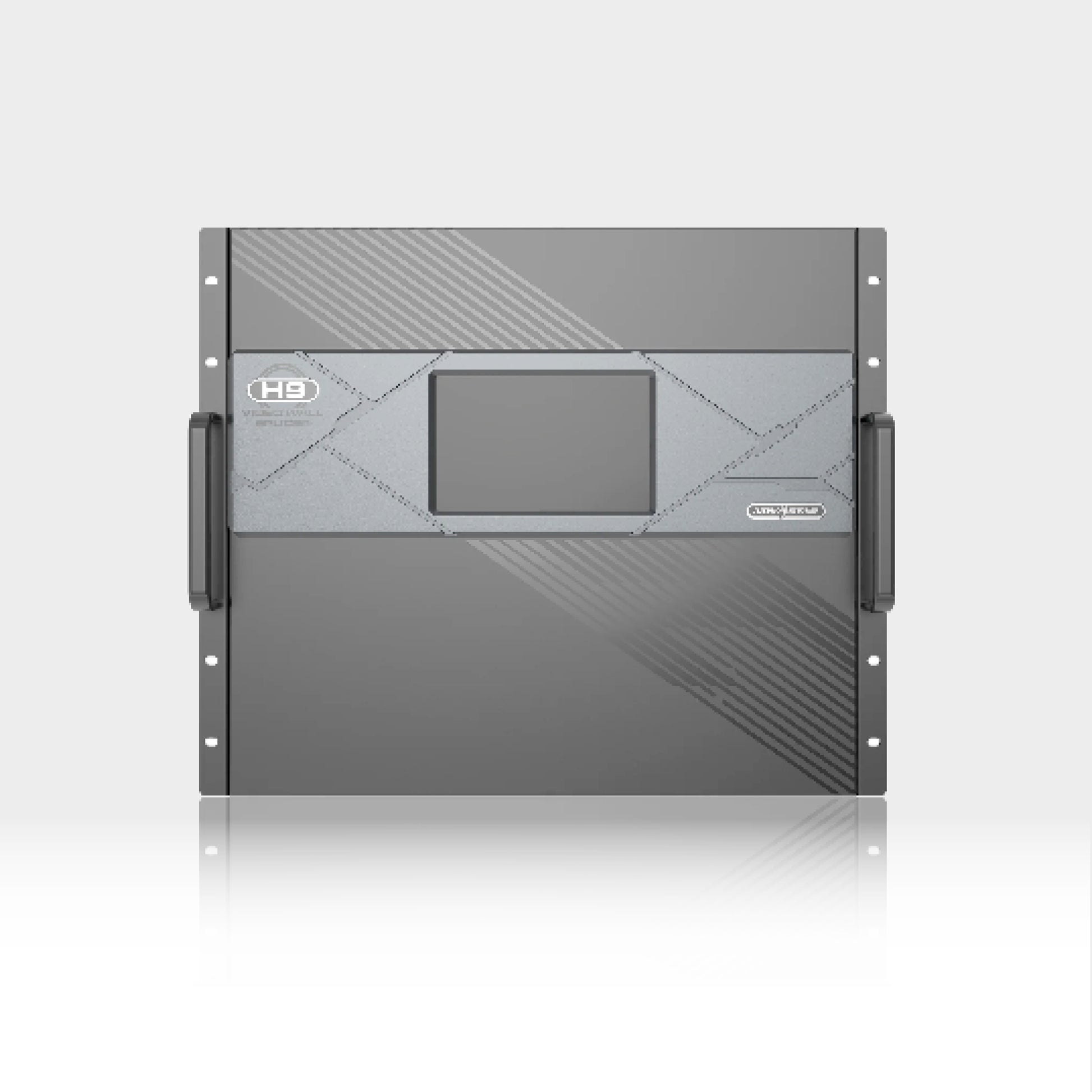

NovaStar H9 Video Wall Splicer

The H9 is part of NovaStar's latest generation of video wall splicers, which feature outstanding image quality and are specifically designed for fine-pitch LED displays. The H9 can operate either as a splicer, integrating both video processing and video control functions, or as a pure splicing processor. The entire unit is modular and pluggable, allowing flexible configuration, as well as "hot-swapping" of input and output boards. Thanks to its excellent features and stable performance, the H9 can be used in a wide range of applications.

Hardware Features

• Two different types of 4K Sending Cards available:
  • H_20xRJ45: Manages up to 13 million pixels
  • H_16xRJ45: Manages up to 10.4 million pixels (incl. 2x OPT-Out)
• Different configurations possible on one Sending Card:
  • 4x 2K×1K@60Hz
  • 2x 4K×1K@60Hz
  • 1x 4K×2K@60Hz
• Online monitoring for all input & output cards
• "Hot-Swap" function for all in- & output cards
• IP input card H_2xRJ45 supports up to 100 IP cameras incl. input mosaic
• Automatic decryption of HDCP protected sources
• multi-screen management
• web control

Specifications:

• Max. Number of input cards: 15
• Max. Number of input channels: 60
• Max. Number of output cards: 5
• Max. Loading Capacity: 65,000,000 Pixel
• Max. Number of layers: 80

General Specifications:

• Supply voltage: AC 100-240V, 50/60HZ
• Power consumption: 450Watt
• Dimensions: 482.6 x 533 x 405.8mm (WxDxH)
• Weight: 35kg
