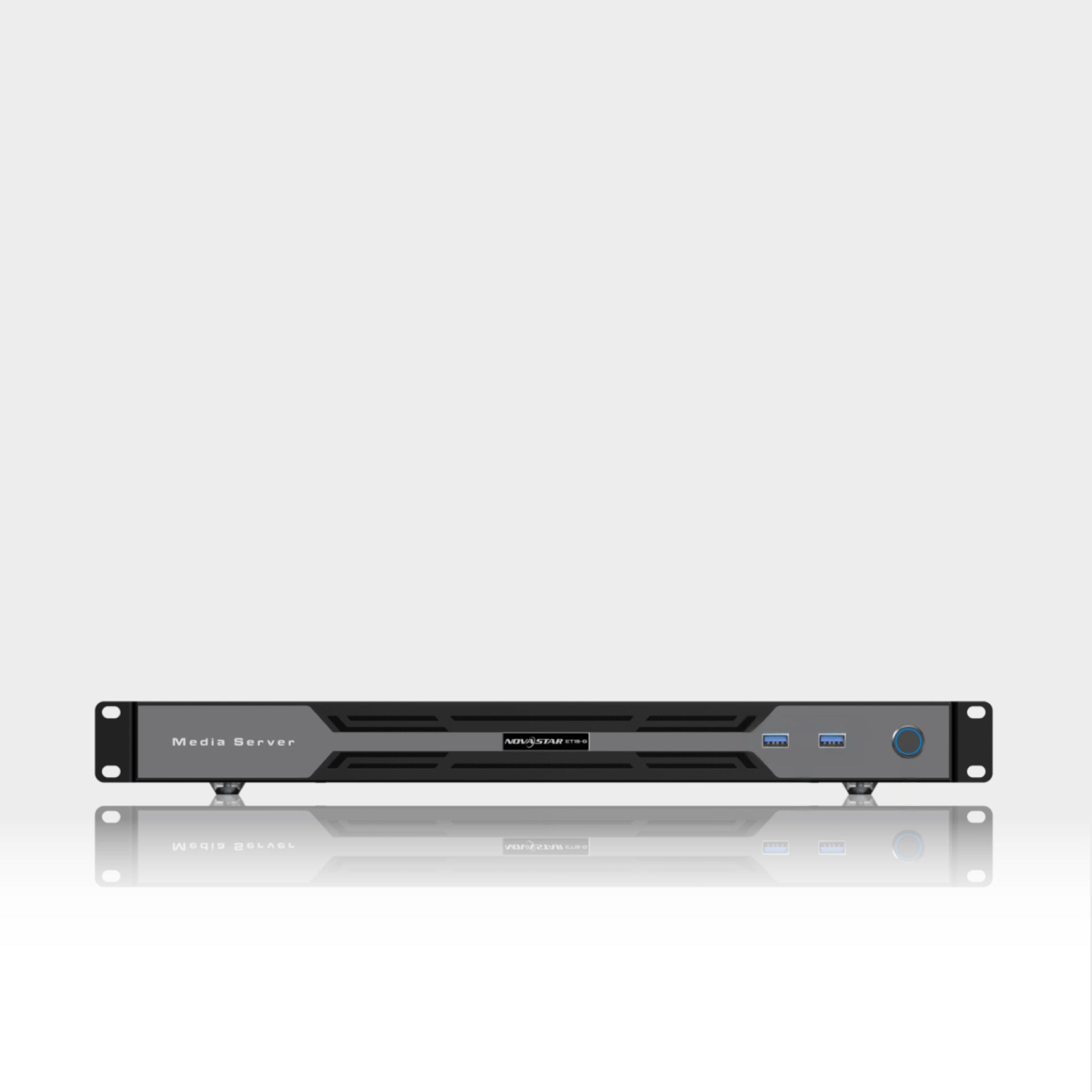

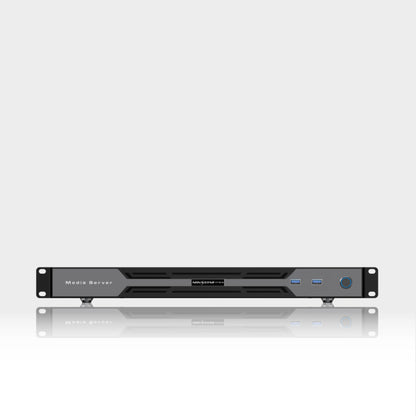

NovaStar ET1S-500G

The ET1S-500G is a new media server designed by NovaStar for small-scale LED or LCD fixed installation applications.

It not only boasts high-quality, ultra-high-resolution pixel-to-pixel display capabilities but also offers diversified mosaic creativity and outstanding media arrangements for professional stage performances. Built-in with intuitive and user-friendly media playback and control software Kompass FX1, the ET1S-G simplifies stage display management and provides best-in-class human-machine interaction. It is ideally suited for exhibitions, showrooms, small-scale conference rooms, and a variety of creative display applications.

• A single unit supports 1x 4K×2K@60Hz output capacity, ultra-high-resolution video decoding and pixel-to-pixel display

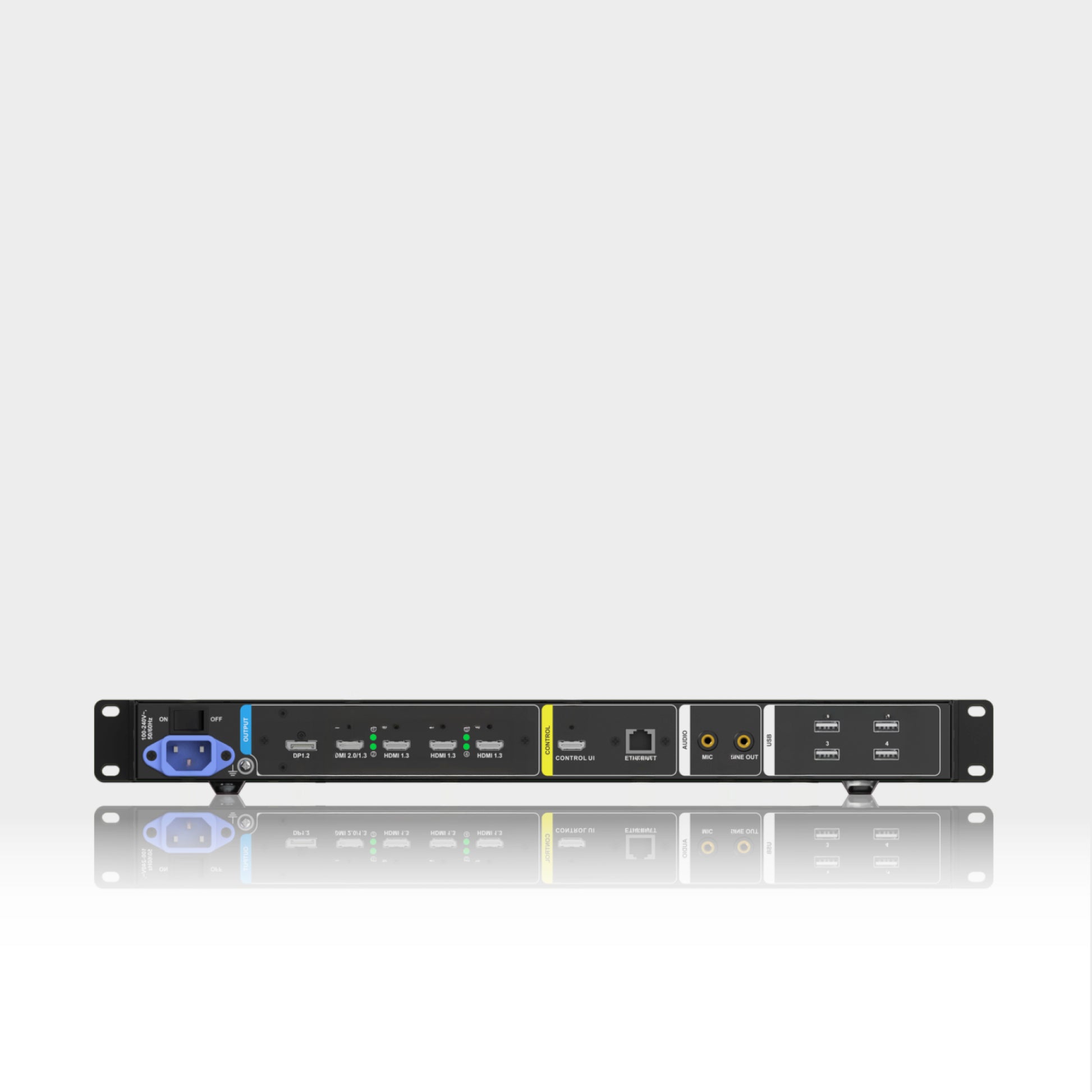

• Multiple connector outputs − 1x DP 1.2 output − 4x HDMI 1.3 together copy DP 1.2 output content − 1x HDMI 2.0 copies DP 1.2 output content
• Firmware update supported
• A single output can be split into up to 1024 partitions, allowing for quick mapping settings and ultra-wide screen configuration
•Playback of up to 4 layers and 1 audio simultaneously
•Visualised program arrangement and management
•Media library management, including videos, pictures, PowerPoint files and audios
•Media file sorting
•Media file batch import
•NDI sources, website sources, streaming media sources and text sources supported
•Media collection configurations
•Up to 1080p PowerPoint files supported
•Using a laser pointer for moving between slides in PowerPoint
•Playback progress management
•Program auto jump
•Adjustable media width, height and priority
•Main KV jumping settings
•Main media based playback progress management
•Crossfade on program switching
•Layer mask and cropping supported
•Hardware decoding
•One-click FTB
•Auto startup of built-in software on system power on, auto program playback on software startup
•Control software VICP (Visual Intelligent Control Platform), enabling a highly efficient and userfriendly control experience
