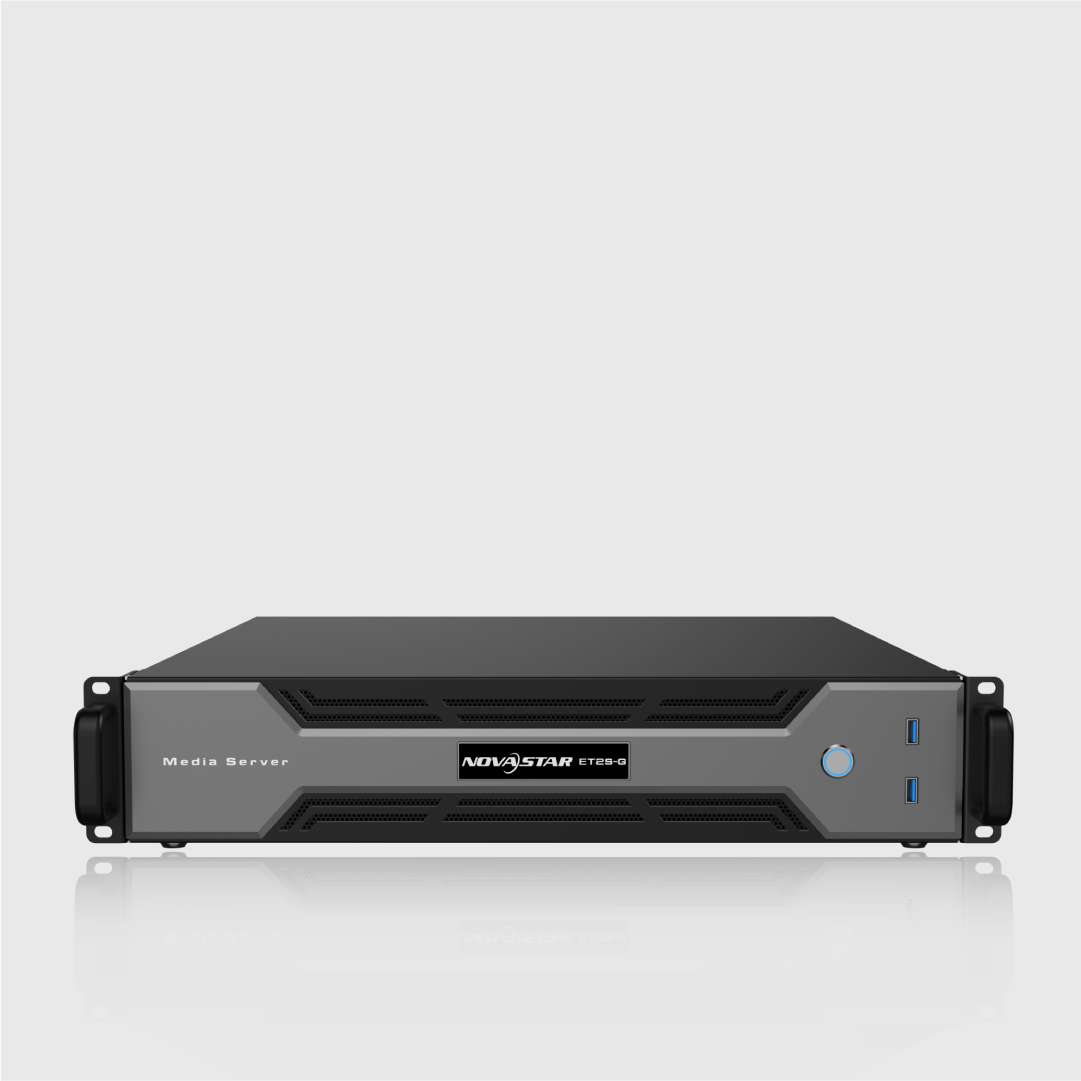

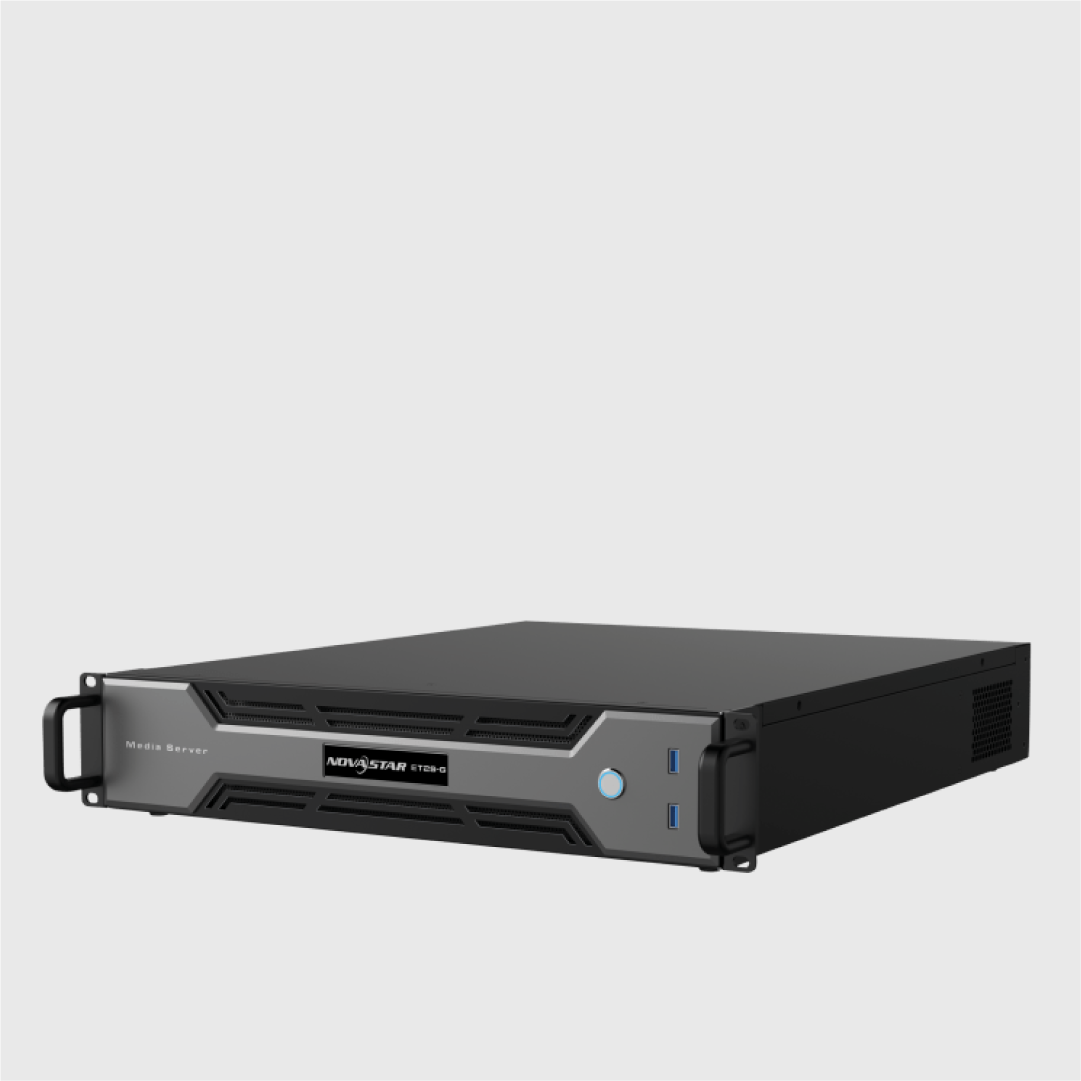

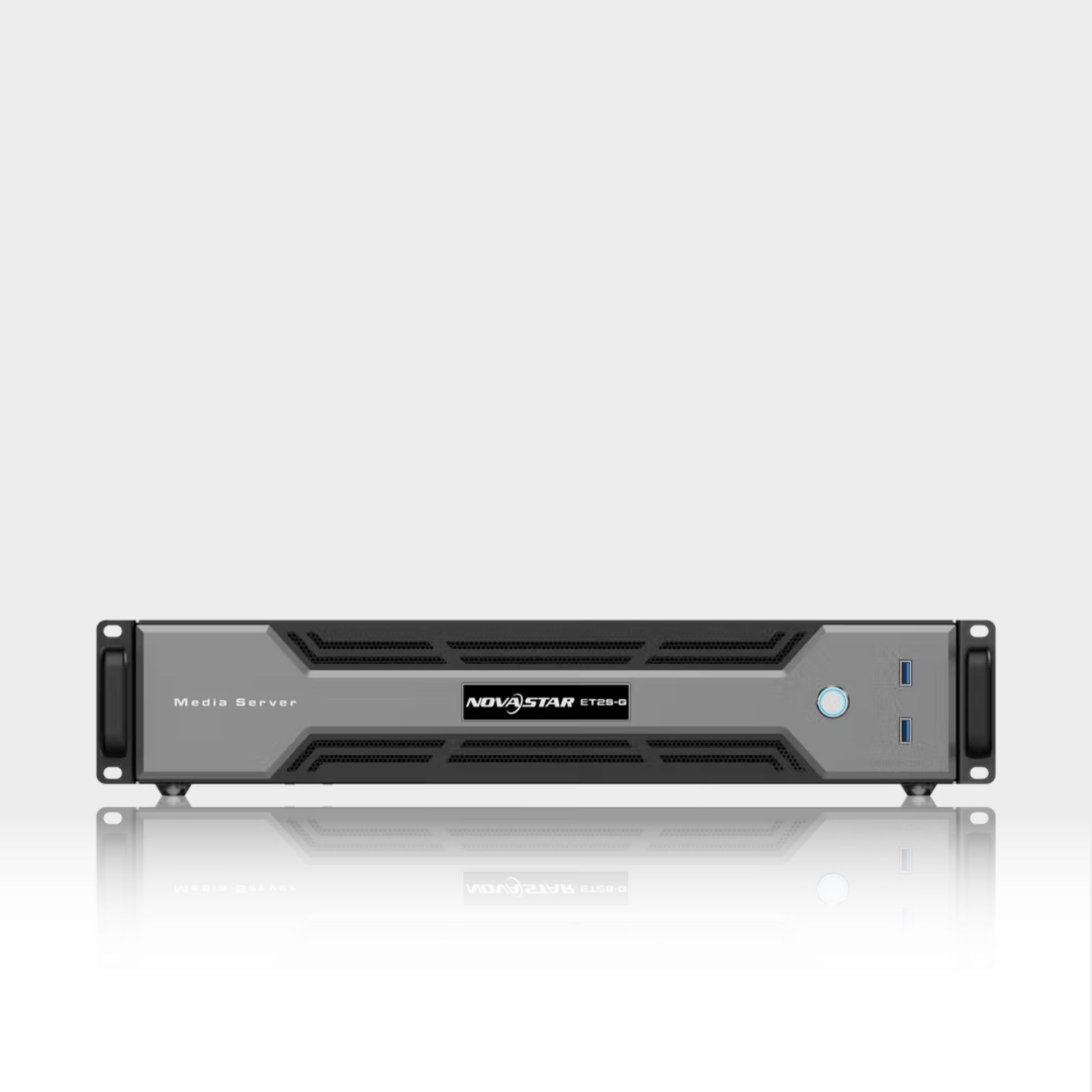

Novastar ET2S-G Media Server

The ET2S-G is NovaStar’s latest multimedia control system, tailored for multimedia exhibition halls, banquet halls, and other small to medium fixed installations. It delivers pixel-perfect ultra-high-definition displays, creative mosaic configurations, and advanced media arrangements, making it ideal for professional stage performances. With built-in intuitive media playback and control software, the ET2S-G simplifies stage display management and offers an exceptional user experience.

Key Features:

• High Performance: Supports up to 8K×2K output resolution, ultra-high-resolution video decoding, and pixel-perfect display.

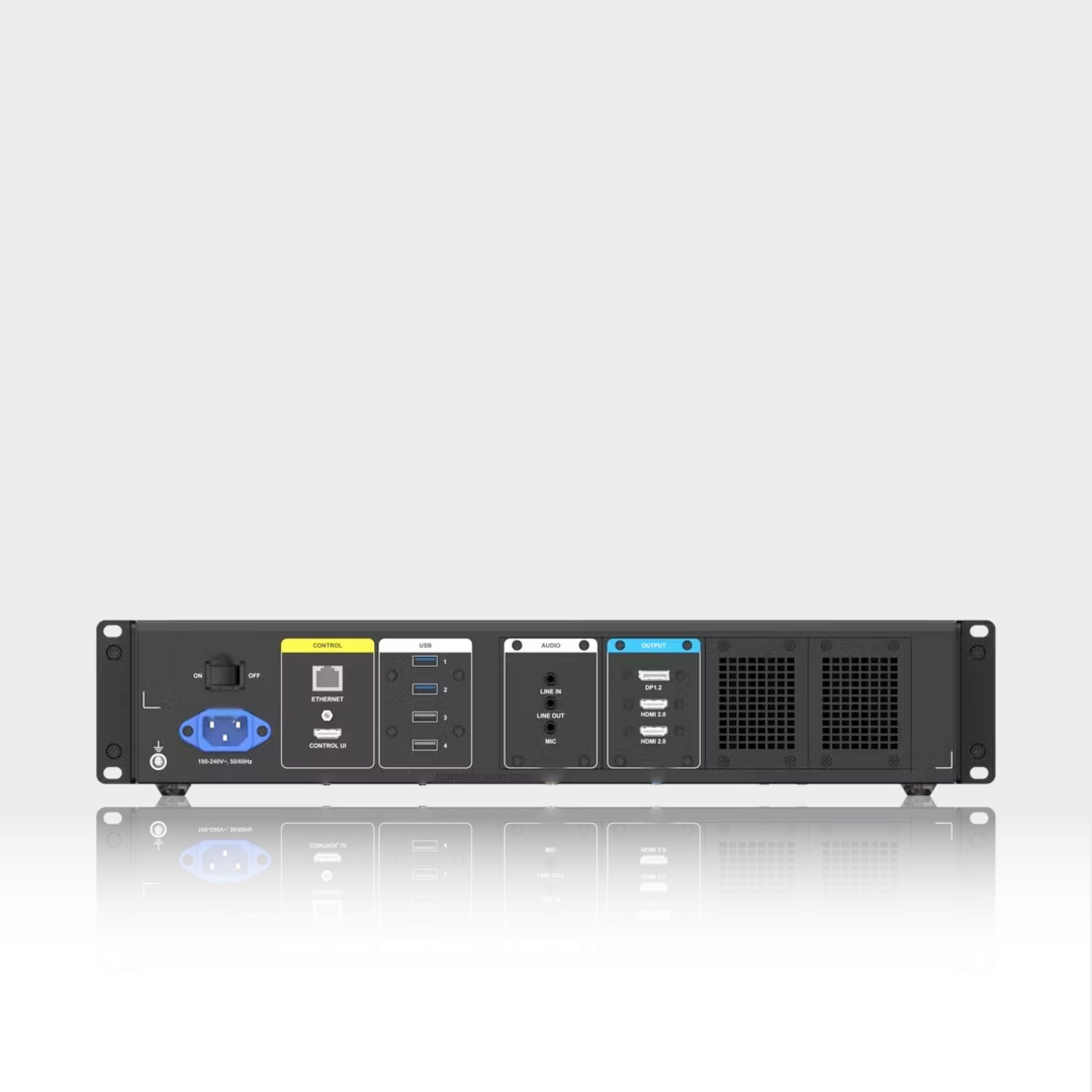

• Flexible Output Options: Includes 1x DP 1.2 and 2x HDMI 2.0 mosaic outputs, enabling splitting, merging, and rotating multiple outputs for creative displays on irregular screens.

• Advanced Screen Configuration: A single output can be divided into up to 64 partitions for seamless mapping and ultra-wide screen setups.

• Layered Playback: Handles up to 8 media layers and 1 audio layer simultaneously with visualized program arrangement and management.

• Dual Editing Modes:

- Live Mode: Real-time program editing and playback.
- Pre-Edit Mode: Edit programs before displaying them on screen.

• Comprehensive Media Library: Supports videos, images, PowerPoint files (up to 1080p), audio, NDI sources, web sources, streaming media, and text. Features batch import, sorting, and media collection configurations.

• Enhanced Presentation Tools: Includes laser pointer control for PowerPoint slide navigation.

• Seamless Playback Management: Features crossfade transitions, playback progress management, auto program jumps, and configurable layer size and priority.

• Creative Visual Effects: Offers layer masking, cropping, keying, blurring, and opacity adjustments.

• Audio Consistency: Ensures consistent audio properties within the same program layer when media is replaced.

• Efficient Workflow: Supports hardware decoding, auto-saving during project editing, and one-click FTB (Fade to Black).

• Automation: Automatically starts built-in software on system power-up and begins program playback on software launch.

•Control Software: Integrated with VICP (Visual Intelligent Control Platform) for a highly efficient and user-friendly interface.

With its robust features and ease of use, the ET2S-G is a powerful solution for managing multimedia displays and delivering professional-grade presentations.

• Power Supply: 400W ATX Open-Frame Power Supply (GW-EPS1U400WB)
• Processor: 12th Gen Intel® Core™ i5-12400
• Memory: 16 GB High-Speed DDR4 RAM
• Motherboard: ASUS Prime B760M-A D4
• Storage: 500 GB M.2 NVMe SSD
• Networking: 2.5 Gigabit Ethernet (2.5GbE)
• Graphics Card: NVIDIA T400 (4 GB GDDR6)
• Input Devices: Keyboard and Mouse Comb
• Operating System: Windows 10 Enterprise LTSC
• Pre-installed Software: Kompass FX2
