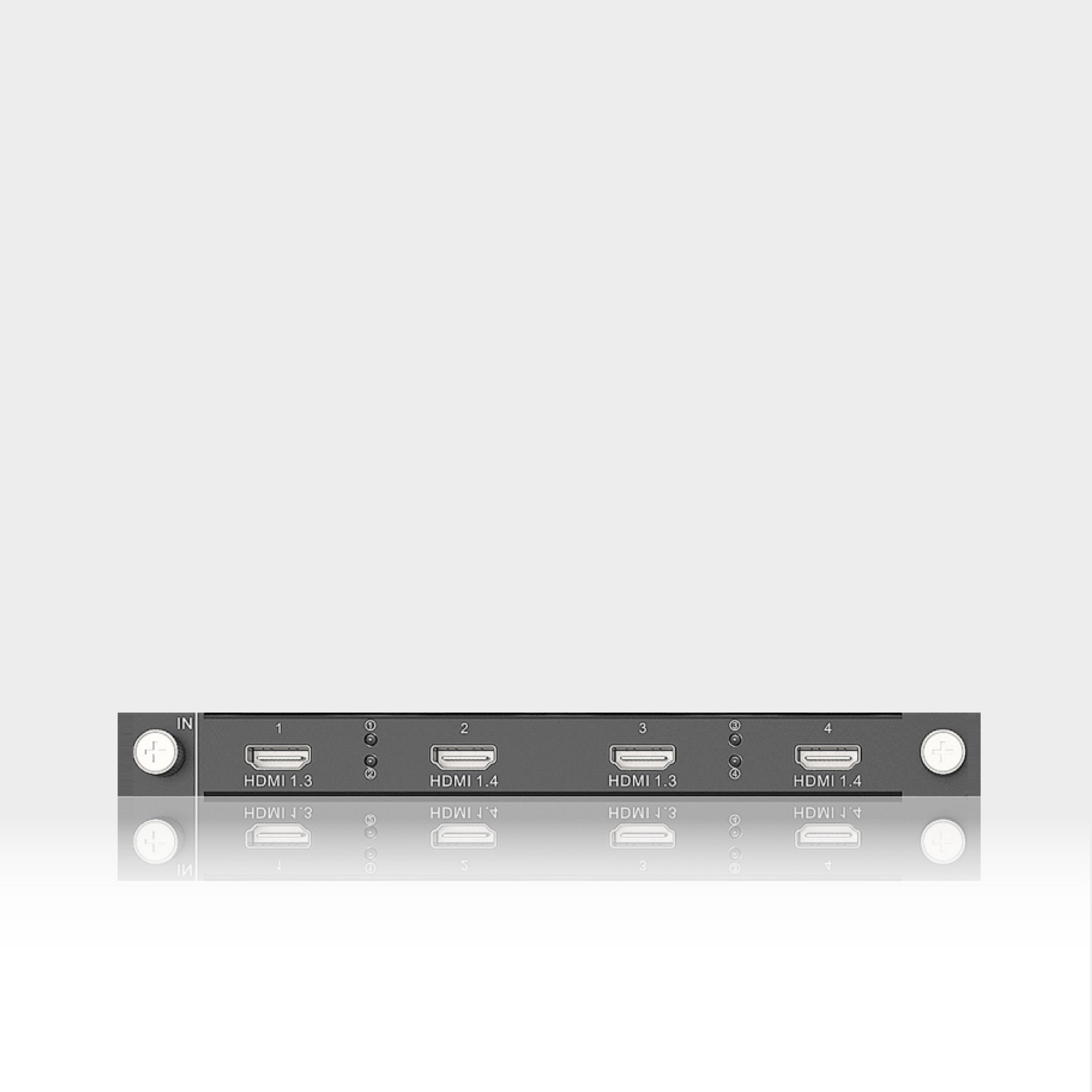

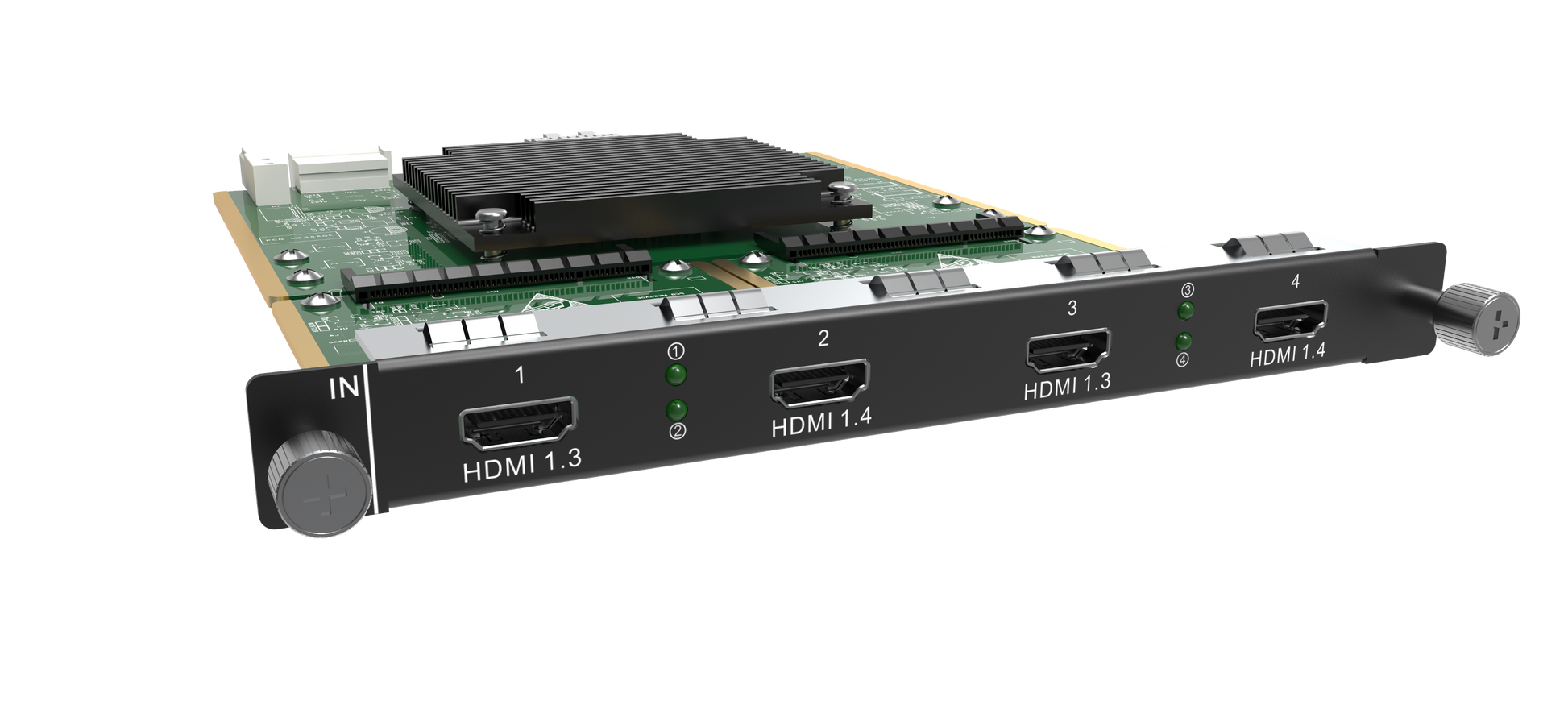

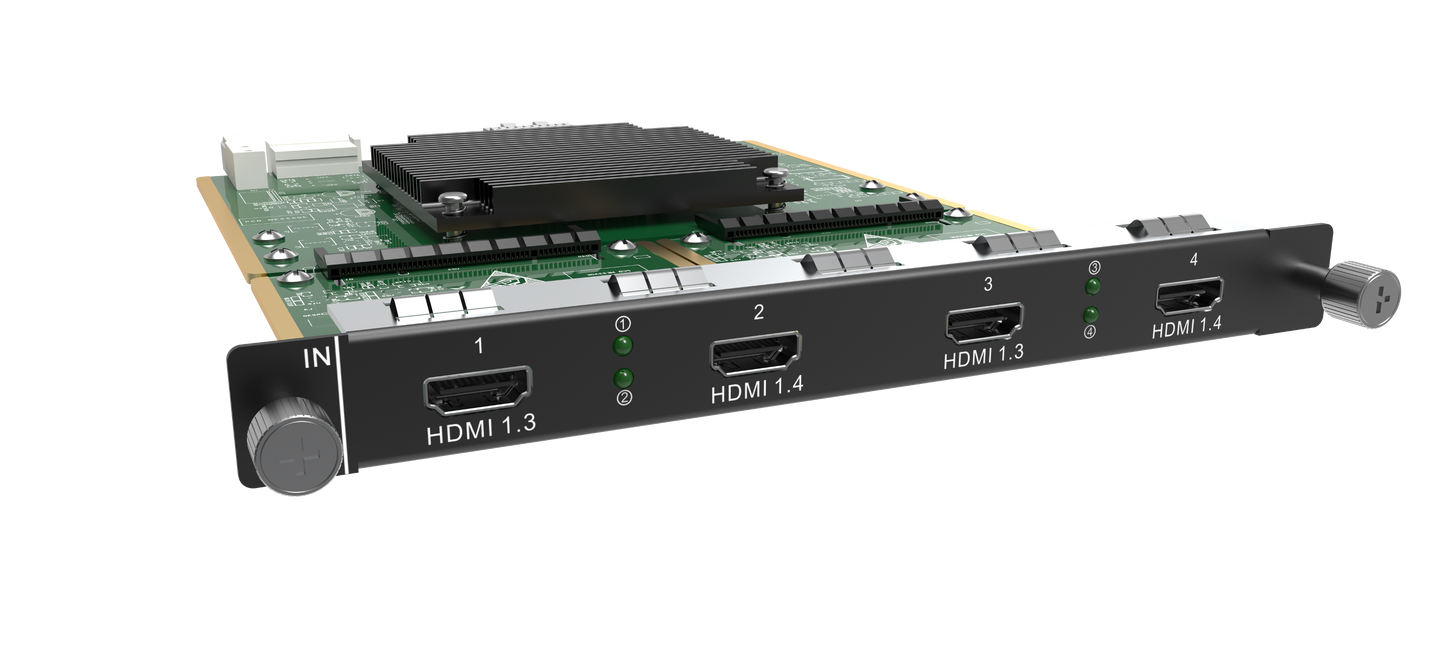

NovaStar H series plug-in 4xHDMI input card

Support for 10-bit input sourcen
Does not support interlaced signal input.

For HDMI 1.3 inputs:

• 2x HDMI 1.3
  − Each connector supports the maximum resolution of 2048×1152@60Hz, and the
  minimum resolution of 800×600@60Hz.
  − Custom resolutions:
  Max. width: 2560 pixels (2560×972@60Hz)
  Max. height: 2560 pixels (884×2560@60Hz)
  − HDCP 1.4 compliant
• 2x HDMI 1.4
  − Each connector supports the maximum resolution of 2048×1152@60Hz, and the
  minimum resolution of 800×600@60Hz.
  − Custom resolutions:
  Max. width: 2560 pixels (2560×972@60Hz)
  Max. height: 2560 pixels (884×2560@60Hz)
  − HDCP 1.4 compliant

For HDMI 1.4 inputs:

• Two HDMI 1.4 connectors are used for input, but two HDMI 1.3 connectors are
  unavailable.
• Each connector supports the maximum resolution of 3840×1080@60Hz.
• Custom resolutions:
  Max. width: 3840 pixels (3840×1124@60Hz)
  Max. height: 4095 pixels (1014×4095@60Hz)
• HDCP 1.4 compliant
