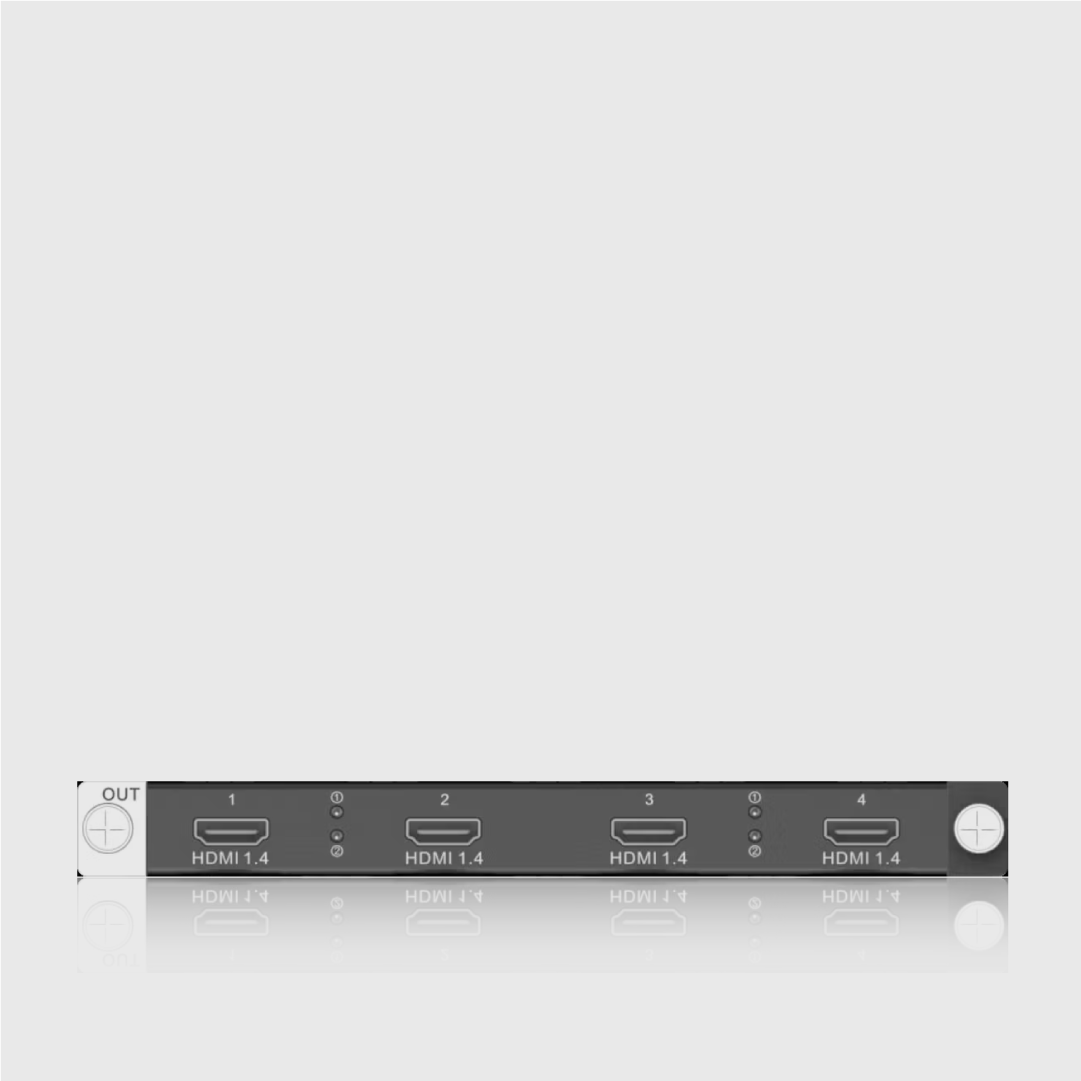

NovaStar H_4xHDMI Output Card

NovaStar H_4xHDMI Output Card

NovaStar-H4xHDMI

£539.00 GBP
£539.00 GBP
Sale Sold out
  • All prices are subject to VAT

Key Features

  • 4x HDMI 1.4
  • Support for single output, dual link output and 144Hz output
  • Single link output:
    • Four connectors are all available for output.
    • Each connector supports the maximum resolution of 2048×1152@60Hz.
    • Custom resolutions:
      • Max. width: 2560 pixels (2560×972@60Hz)
      • Max. height: 2560 pixels (884×2560@60Hz)
    • Supports 8-bit RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 output.
    • Supports 10-bit RGB 4:4:4/YCbCr 4:4:4 output.
  • Dual link output:
    • Connectors 2 and 4 are available for output.
      • Connector 1 copies the output on connector 2, and connector 3 copies the output on connector 4.
    • Each connector supports the maximum resolution of 4096×2160@30Hz/3840×1080@60Hz.
    • Custom resolutions:
      • Max. width: 4096 pixels (4096×1124@60Hz)
      • Max. height: 4096 pixels (1014×4096@60Hz)
    • Supports 8-bit RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 output.
    • Supports 10-bit RGB 4:4:4/YCbCr 4:4:4 output.
  • Status LEDs:
    • On: The output connector is connected normally.
    • Off: The output connector is not connected.
  • Specifications:
    • Weight: 500 g
    • Dimensions: 193 mm × 247.12 mm × 21.15 mm
    • Power consumption: 22.1 W
