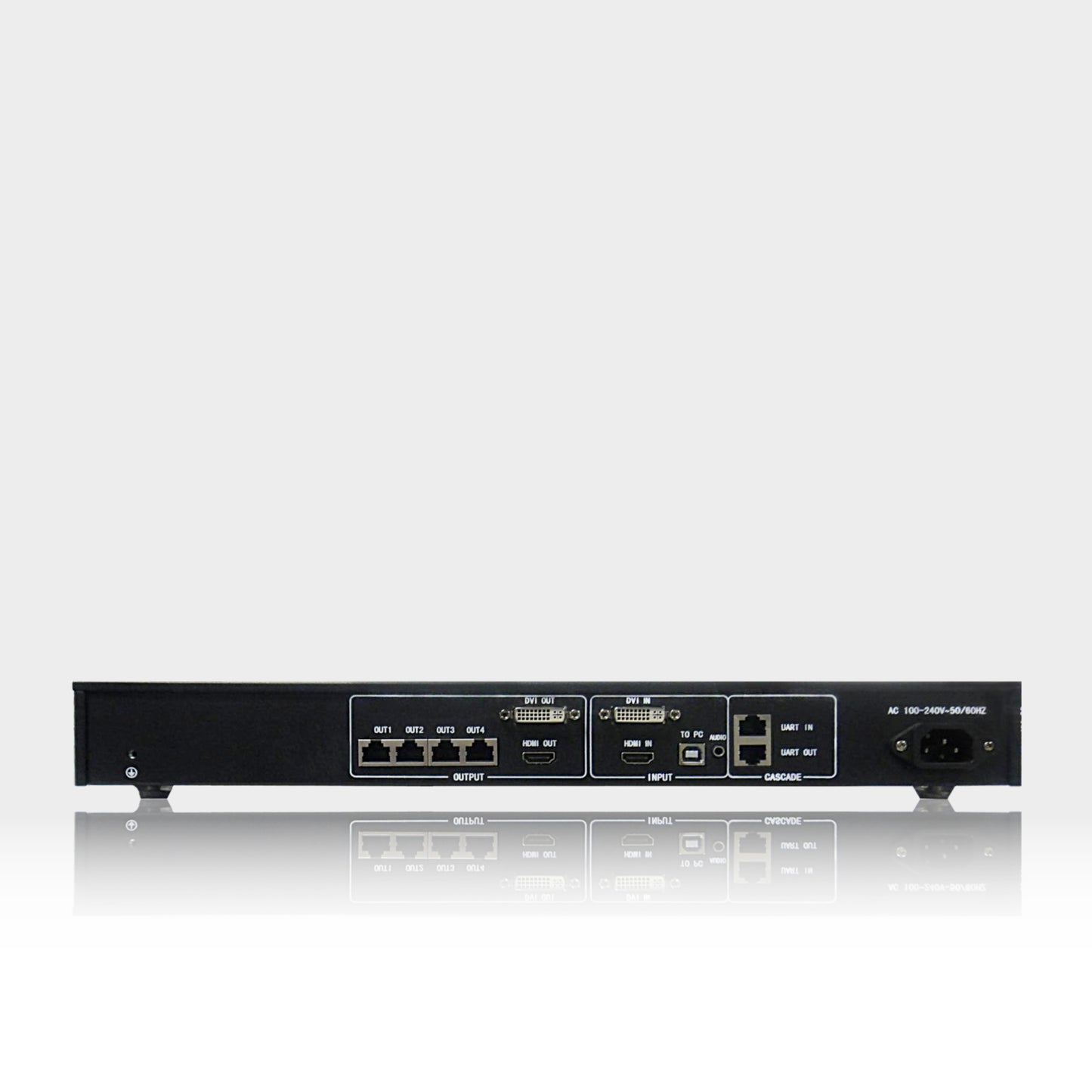

NovaStar MCTRL660

MCTRL660 is a controller developed by NovaStar with a single-unit loading capacity of 1920×1200@60Hz. MCTRL600 utilises UART to cascade and control multiple units. Suitable for a variety of applications, especially rental and fixed installations such as stage broadcasts, monitoring centres, sports arenas, and more.

True hot backup. No flickering. No blackout.
One-button upload of settings and parameters.

• 12bit/10bit HDMI input, DVI input
• HDMI.DVI loop output for cascading or monitoring
• HDCP Blue-ray directly input
• 8bit video source loading capacity of 1920×1200@60Hz.
• 12bit video source loading capacity of 1440×900@60Hz
• 1 × DVI input
• 1 × HDMI input
• 4 × Gigabit Ethernet outputs
• Supports the new generation of NovaStar calibration technology, which is fast and efficient
• Supports resolutions up to 1920×1200@60Hz and downward compatibility
• Multiple controllers can be cascaded
• Supports 18-bit grayscale processing and display
• Manual screen brightness adjustment, which is fast and convenient
• Quick screen configuration without using a computer
• Adopts an innovative architecture to implement smart screen configuration, allowing a screen to be configured within 30 seconds and greatly shortening the stage preparation time
• Adopts NovaStar G4 engine to realize a perfect display image with no flickering or scanning lines, as well as fine quality and good sense of depth
• Supports a variety of video formats, as described in Figure 2-1
