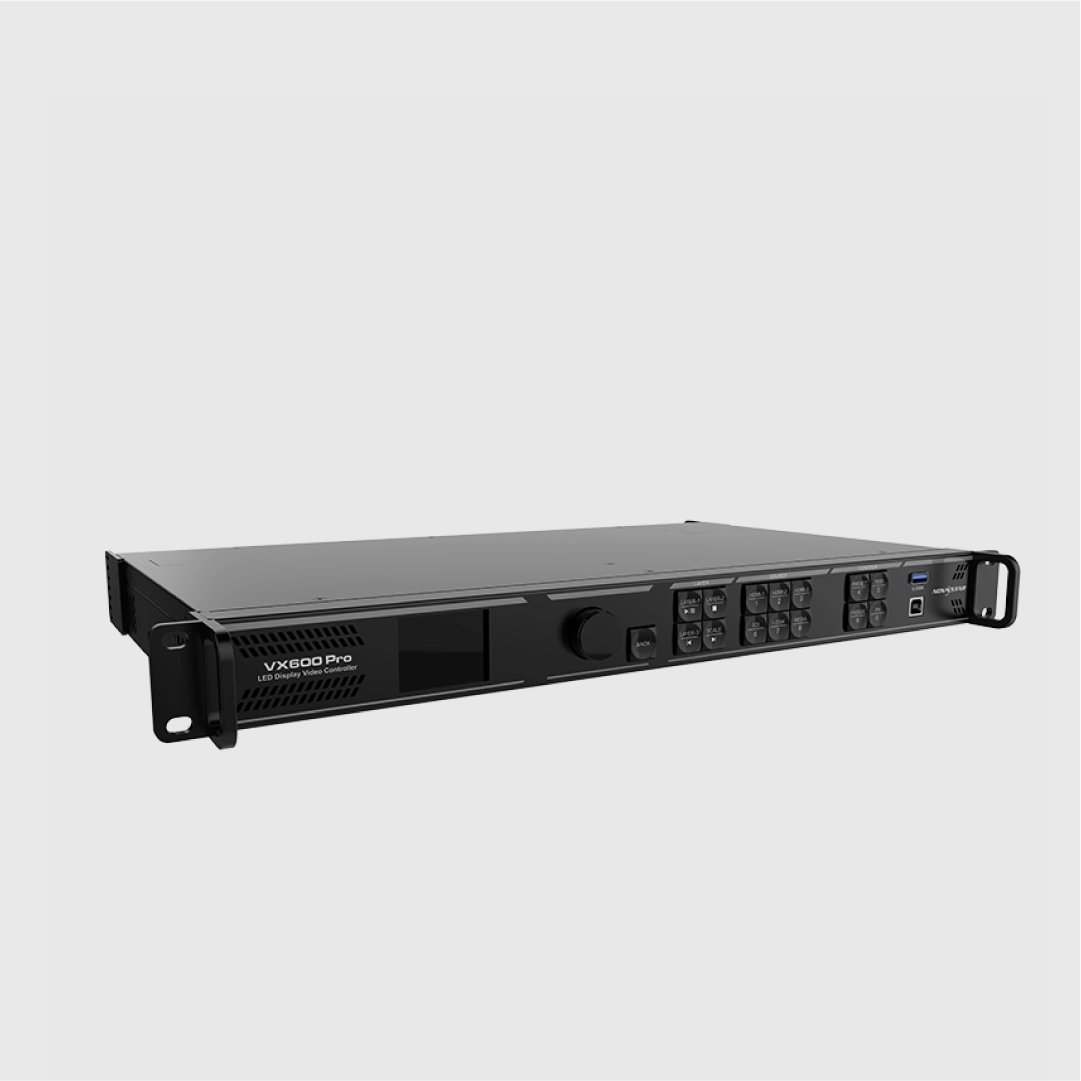

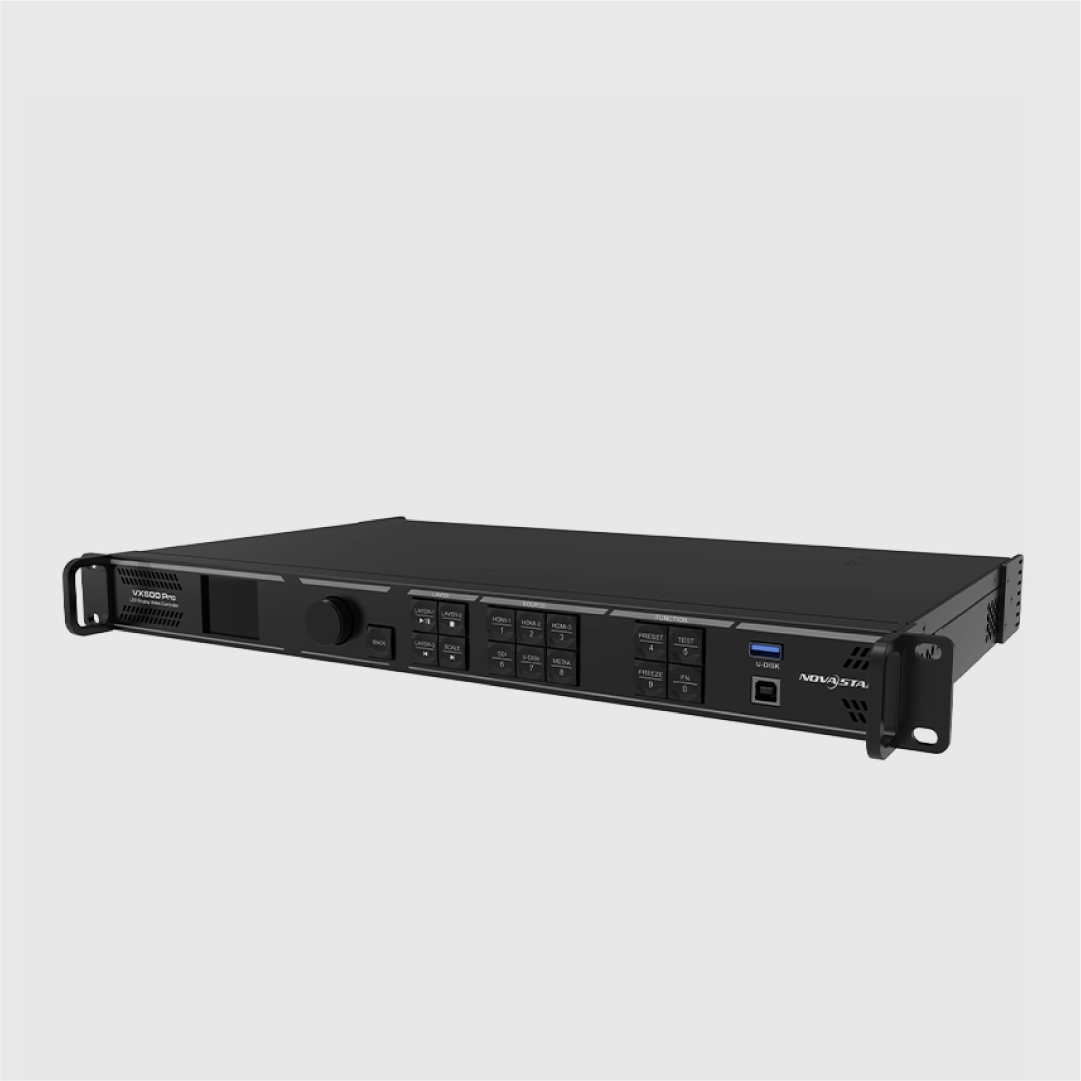

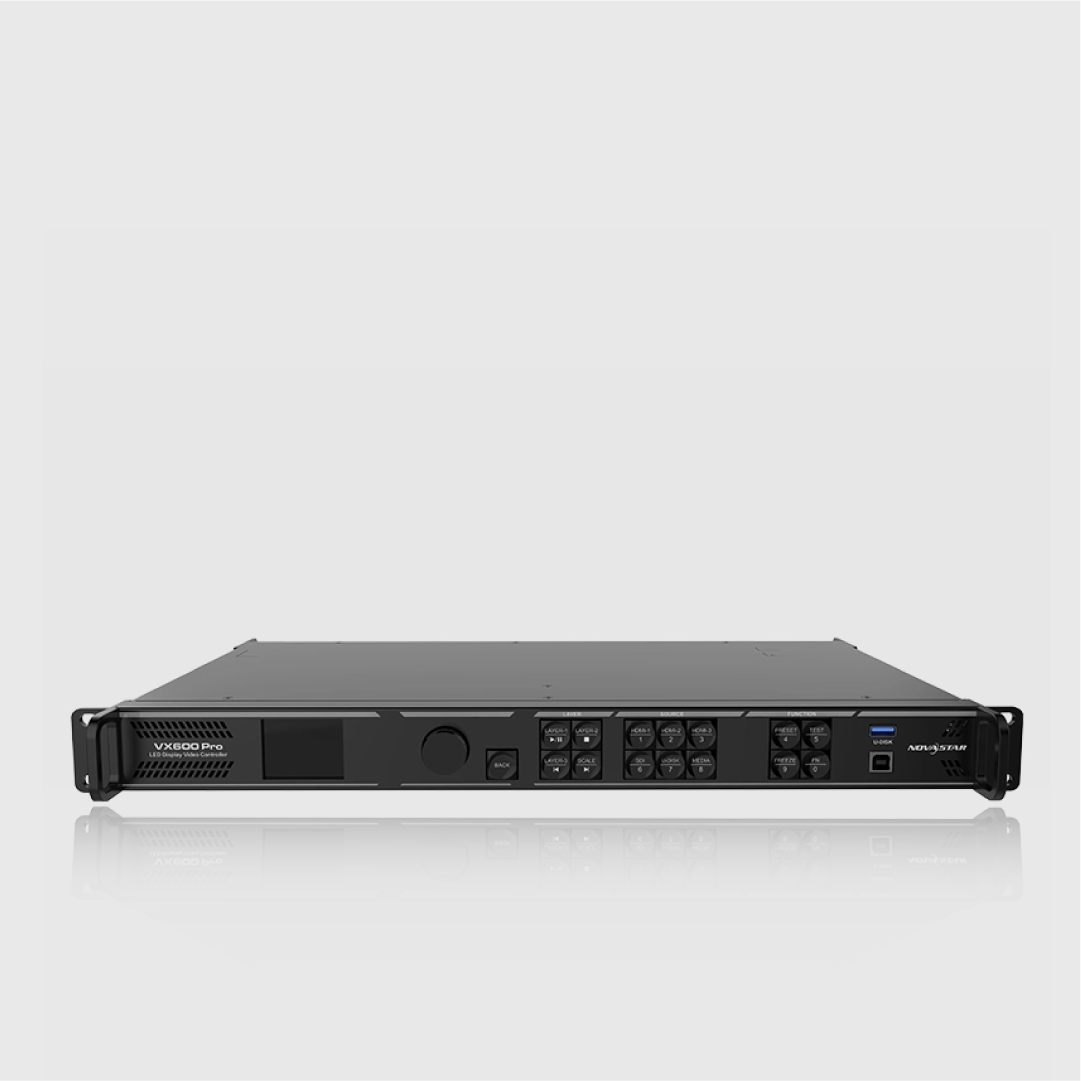

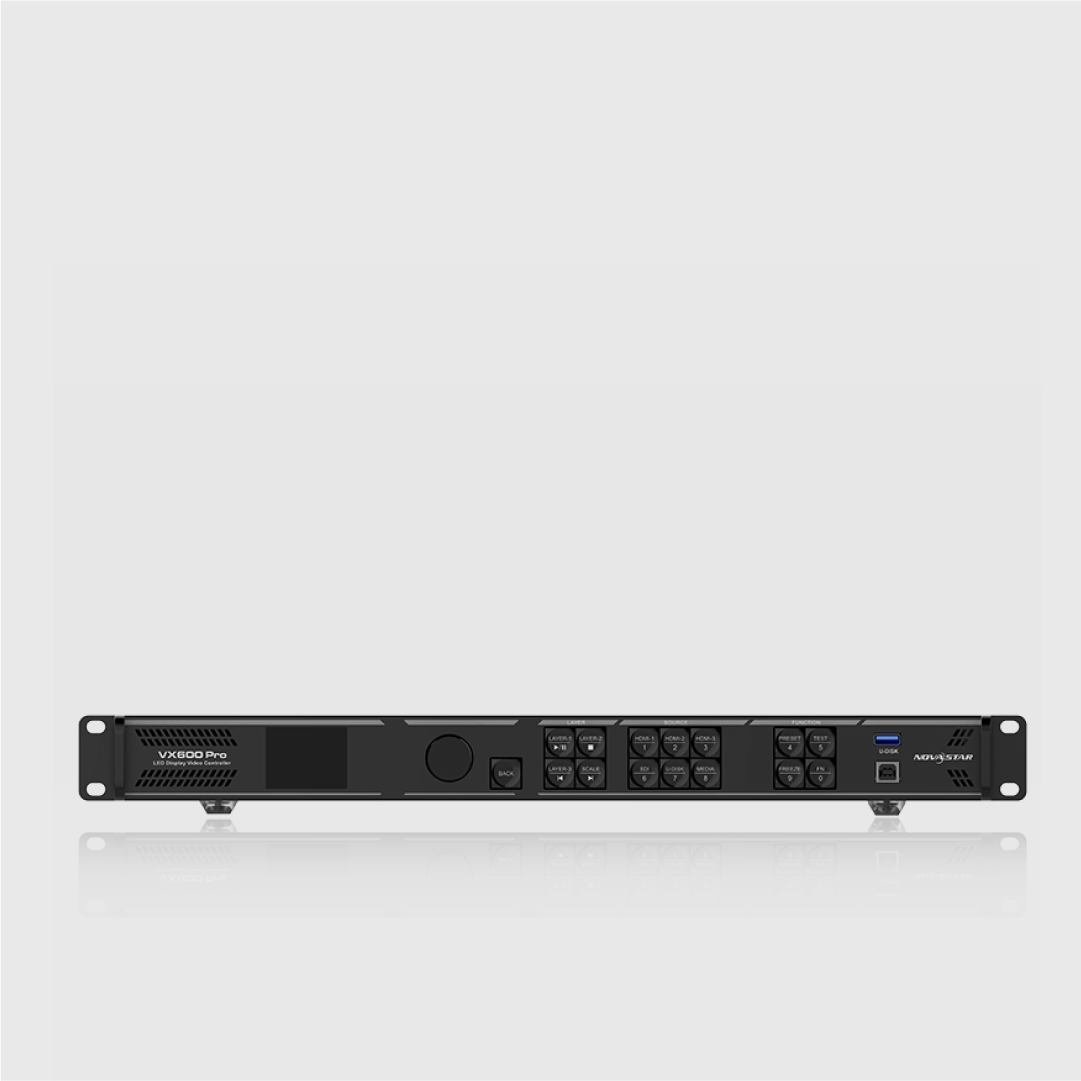

NovaStar VX600 Pro

The VX600 Pro is an all-in-one controller with 6 Ethernet ports that can control up to 3.9 million pixels and handle input resolutions up to 4K×2K@60Hz.

Inputs:

• 1x HDMI2.0 (max. resolution 4096×2160@60Hz)
• 2x HDMI1.3(max. resolution 1920×1080@60Hz)
• 1x 3G-SDI (max. resolution4096x2160@60Hz)

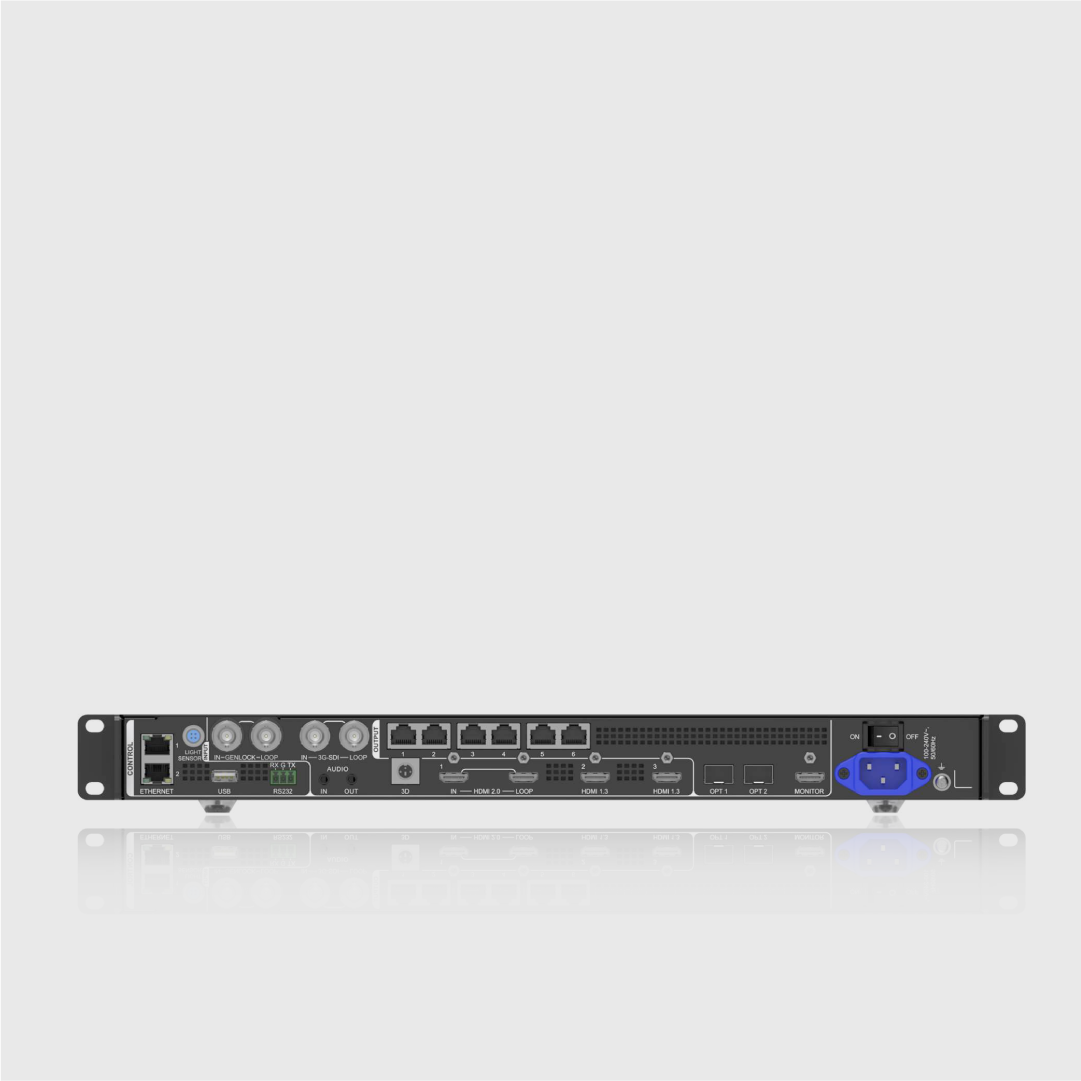

Outputs:

• 6x LED-Out (RJ45)
• 2x OPT-Out (10G)
• 1x HDMI1.3 (1920×1080@60Hz)

Further Features:

• 3D connector (for 3D emitters)
• Genlock
• Supports up to 6 layers (2Kx1K@60Hz)
• Memory for 256 presets
• Light sensor connector

General Specifications:

• Supply voltage: AC 100-240V, 50/60HZ
• Dimensions: 482.6×302.2×50.1 mm (W×D×H)
• Power consumption: 43 W
• Weight: 3.9 kg
