NovaStar VX400

NovaStar VX400

£915.83 GBP
£915.83 GBP
Sale Sold out
  • All prices are subject to VAT

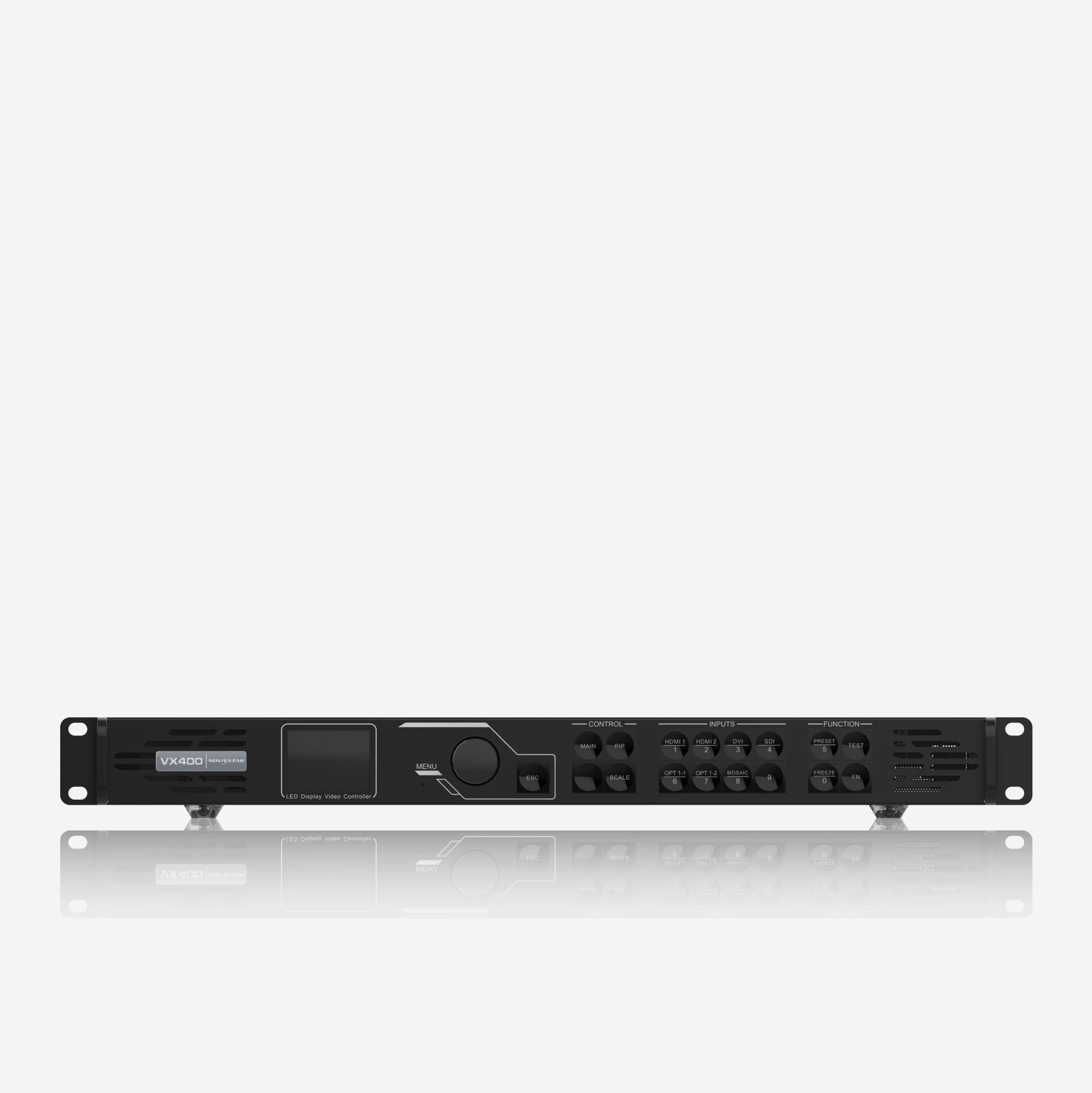

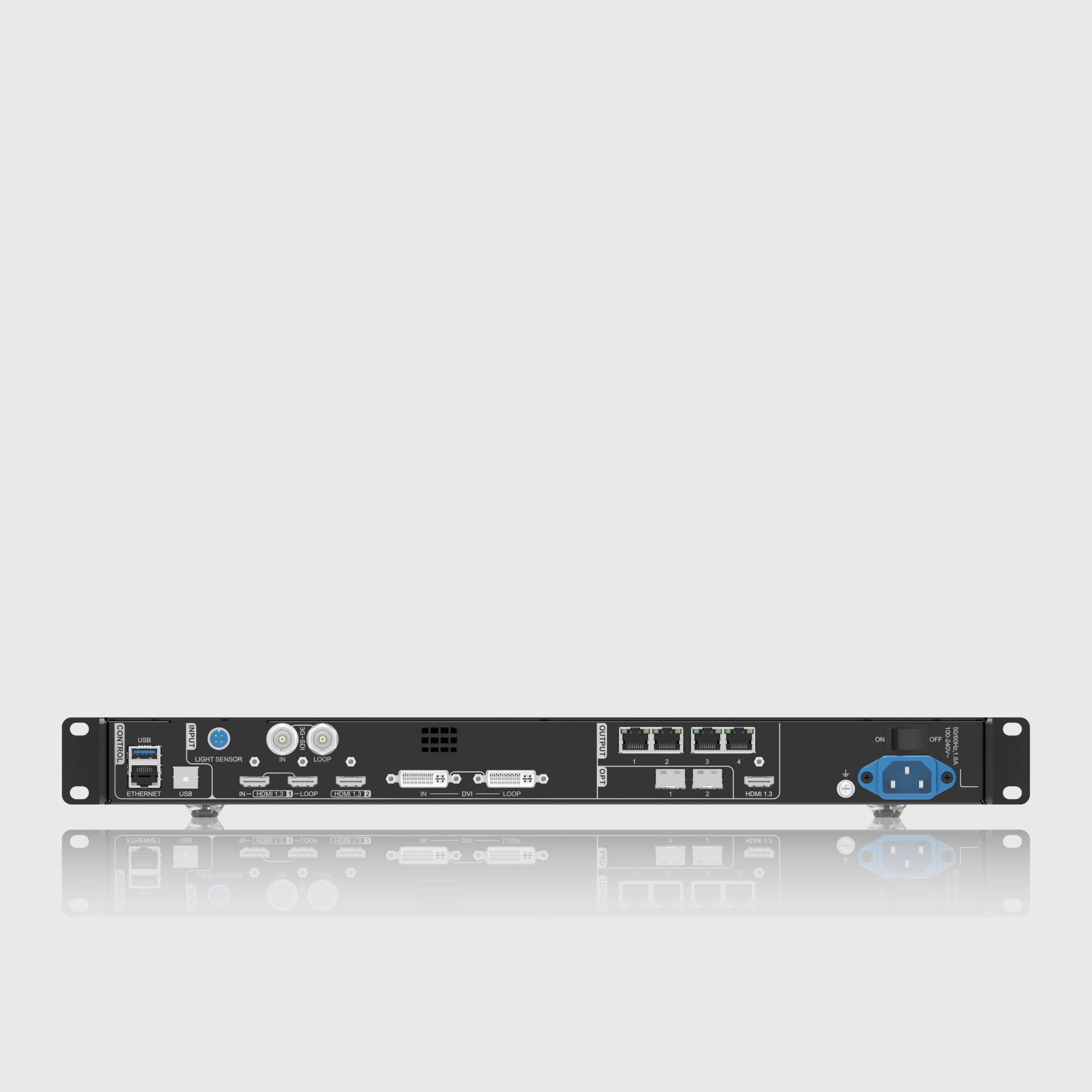

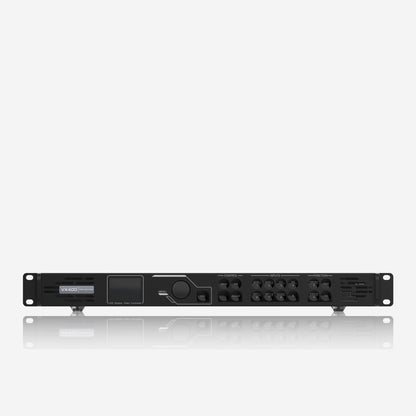

The VX400 is NovaStar's new all-in-one controller that integrates video processing and video controlling in one device. It has 4 Ethernet ports and supports different working modes (video controller, fiber converter, bypass mode). A single unit can manage up to 2.5 million pixels.

Hardware features:

Inputs:

  • 2x HDMI 1.3 : 1920×1080@60Hz, compatible with HDCP 1.4, supports interlaced signals, supports custom EDID's:
    • Max. Width: 3840 (3840×648@60Hz)
    • Max. Height: 2784 (800×2784@60Hz)
  • 1x DVI: 1920×1200@60Hz, compatible with HDCP 1.4, supports interlaced signals, supports custom EDID's:
    • Max. Width: 3840 (3840×648@60Hz)
    • Max. Height: 2784 (800×2784@60Hz)
  • 1x 3G-SDI (max. 1920×1080@60Hz), supports ST-424(3G), ST-292(HD) & ST-259(SD), supports de-interlacing

Outputs:

  • 4x LED-Out (RJ45)
  • 1x HDMI 1.3 Out
  • 1x HDMI 1.3 (Loop)
  • 1x DVI (Loop)
  • 2x OPT-Out (10G)

Further Features:

  • Connection for light sensor
  • PIP function
  • Memory for 10 presets
  • Cascading via USB possible (up to 4 devices)
  • Display configuration without computer possible
  • Control via USB or LAN
  • V-Can Support

General Specifications:

  • Supply voltage: AC 100-240V, 50/60HZ
  • Dimensions: 482.6 x 301.5 x 43.6mm (WxDxH)
  • Power consumption: 28 watts
  • Weight: 4kg
